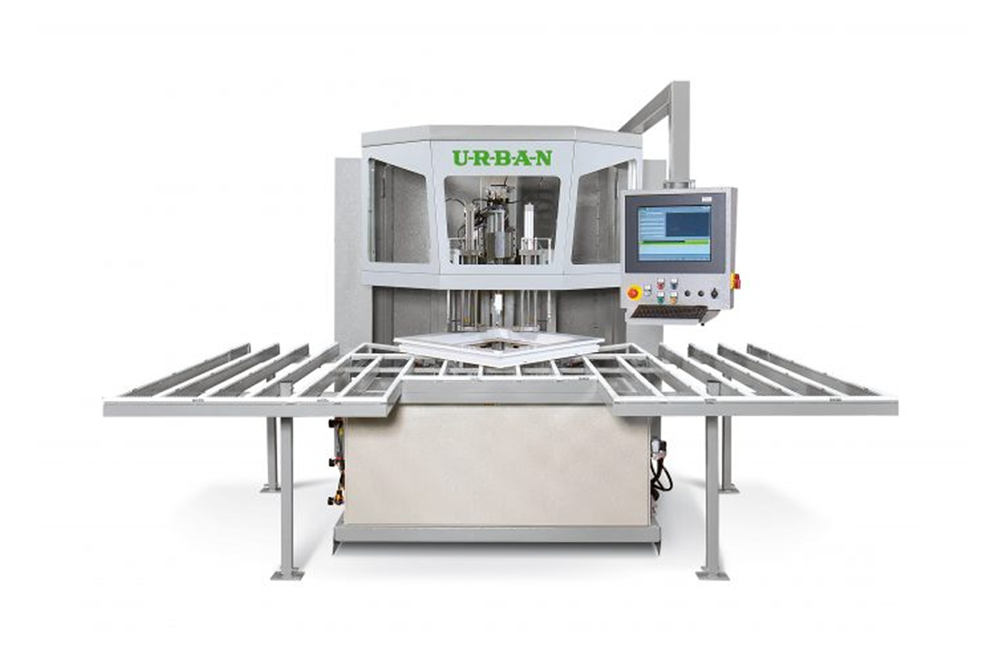

SV 530-B - Corners Cleaner

With the SV 530-B we developed for you a very flexible weld seam cleaning machine for vinyl window profiles with a freely programmable CNC-axes-control convincing by an excellent price-performance-ratio and an optimal adaptation to your requirements.

The PC control - as a standard with an industrial PC basing on Windows - guarantees an operator-friendly handling of the cleaning machine as well as an excellent and uncomplicated integration into your production and easy connection with other machines and lines. The profile identification offers the possibility of a fully automatic identification of your profiles and profile systems (optionally available).

Additionnaly you can connect or disconnect different machining units. All in all, 17 tooling positions are available si that up to 26 individual machining units are possible with multiple tooling.

The standard tooling includes: two grooving or cutting knife units, two inside cleaning units, two drilling/milling units and a disc cutting unit. Optionally numerous spacial tools are at your disposal and offer a variety of machining possibilities: horizontal/vertical knife cutting unit as well as an inside cleaning unit for inclined inner corners and radii (further machining units on demand).

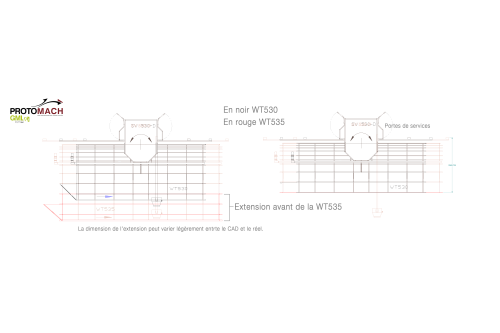

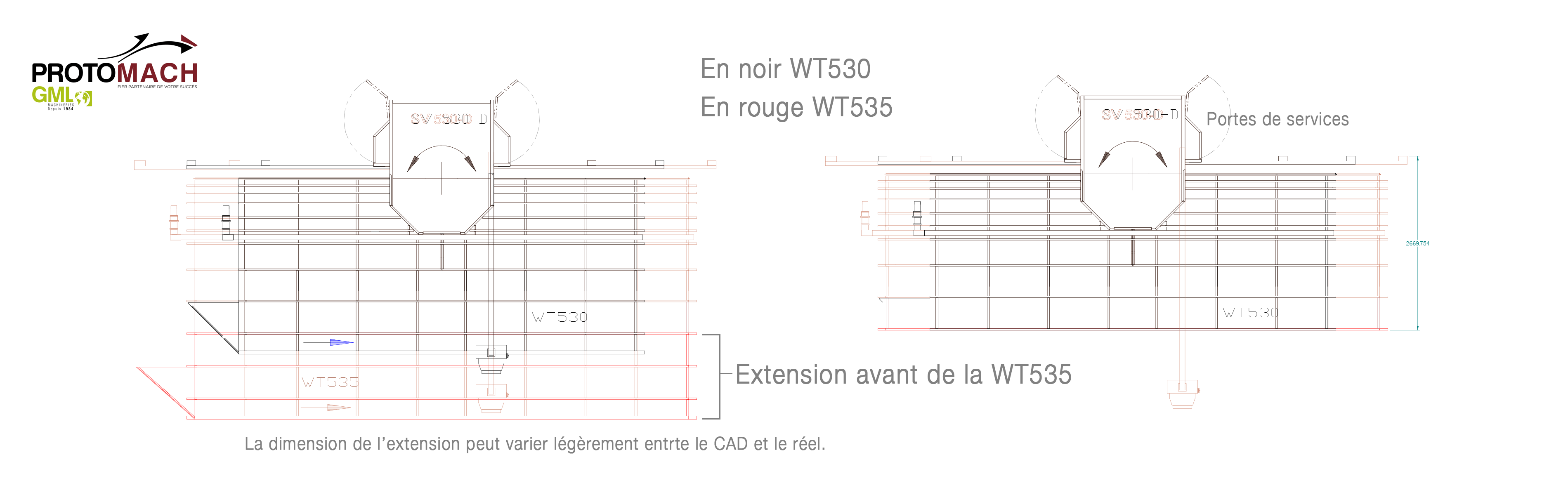

You also can retrofit your SV 530-B wih an automatic turning station WT 530-B. By the fully automatic turning and feeding of the window frames you save time and increase your productivity. The proven turning technology guarantees an easy turning of small and big frames with transoms and crosses and individually fits in your production line due to the fact that you can freely choose the throughput direction.
